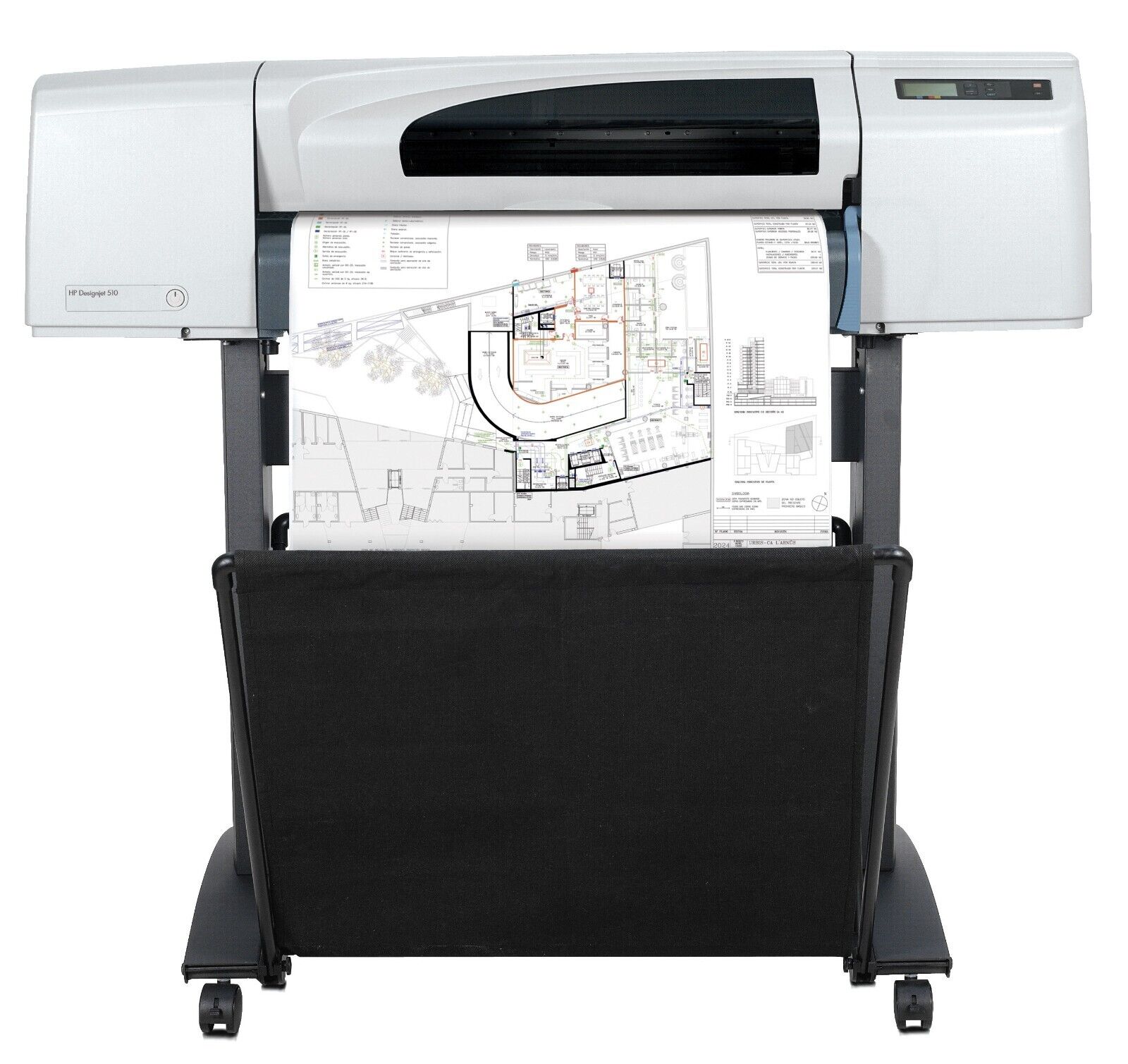

This photo is from the manufacturer and may show with options at added costs. Please see the options listed or the PDF file.

Please assume supplies and cables are not included with demo and refurbished products

New HP Designjet 510 24-in Printer Color Wide Printer

Your Price: $1,244.44

> New, HP #CH336A
> Color, Wide Printer

Free Shipping.
Free UPS Ground Shipping
* Freight requiring LTL to be quoted
* Average ship time, approximately one week

Description
Specification
Accessories
Related Items

Product Specifications & Hardware Details

Brand: HP
MPN: CH336A
Model: Designjet 510 24-in Printer
Type: Large-Format Technical Inkjet Plotter
Standard Functions: 24 in. Large-Format Printing, Single Roll Media Feed, Manual Sheet Feed, Automatic Media Cutter, Hi-Speed USB 2.0 Local Connectivity, IEEE 1284 Parallel Local Connectivity.
Optional Functions: Wired Network Sharing (Requires upgrading with an HP Jetdirect Internal Print Server card).
What's Included in the Box: HP Designjet 510 24-in Printer Engine, Integrated Media Stand and Output Bin, Media Roll Spindle, 4 Starter Ink Cartridges, 4 Separate Printheads, Quick Reference Guide, Setup Poster, Power Cord, and Software Drivers CD.
Required Items (Sold Separately): Large-format paper rolls or cut sheets up to 24 in. wide, Replacement HP 82 Ink Cartridges (Black, Cyan, Magenta, Yellow), HP 11 Printheads, or a standard USB / Parallel printer data cable.

Technical Specifications

Technical Attribute	HP Designjet 510 24-in Printer Value
Print Speed	Line Drawings: Up to 3.5 minutes per page on A1/D-size media (Glossy) or up to 55 seconds per page (Fast Mode)
Print Resolution	Up to 2400 x 1200 optimized dpi output
Ink Delivery System	4-color thermal inkjet design utilizing modular ink tanks and long-life printheads
Page Description Languages	HP-GL/2, HP-RTL, HP PCL 3 GUI
Media Sizes Accepted	Rolls from 11 in. up to 24 in. wide / Sheets from 8.3 x 11 in. up to 24 x 74.7 in.
Memory Size	160 MB RAM Standard (Expandable up to 416 MB via specialized accessory slot)

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the HP Designjet 510 24-in Printer. You can add these to your order directly from the accessories tab below:

Memory Upgrades: HP 256 MB Memory Expansion Module (CH654A)
Network Print Cards: HP Jetdirect 620n Fast Ethernet Internal Print Server (J7934G)
Ink Tank Supplies: HP 82 Black (69 ml or 28 ml) and Cyan, Magenta, Yellow (69 ml) Ink Cartridges
Replacement Printheads: HP 11 Black (C4810A), Cyan (C4811A), Magenta (C4812A), and Yellow (C4813A) Printheads

Frequently Asked Questions (FAQ)

Can this printer handle architectural blueprints and CAD line drawings out of the box?
Yes. The Designjet 510 features an embedded hardware HP-GL/2 engine. This ensures precise vector rendering, accurate scaling, and line clarity for complex CAD layout sheets and GIS map prints.
How does the automatic cutter handle media, and can it be turned off?
The plotter features an integrated automated horizontal cutter that cleanly trims bond, coated, and photo media after each sheet completes. It can easily be disabled or configured for manual trimming via your computer's print driver menu.
Does this model feature built-in Wi-Fi wireless networking?
No. This technical plotting engine relies on built-in physical USB 2.0 or legacy parallel local interfaces. Multi-user network environments require adding a compatible internal HP Jetdirect network card or connecting to a network print server.
