  5. New Lexmark Forms 2580n+ Mono DOT Matrix Printer

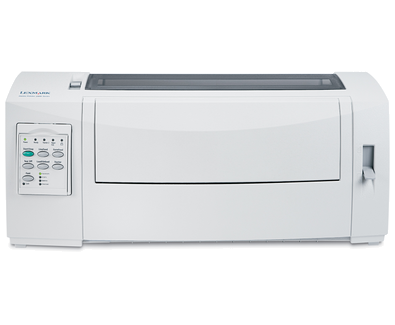

This photo is from the manufacturer and may show with options at added costs. Please see the options listed or the PDF file.

Please assume supplies and cables are not included with demo and refurbished products

New Lexmark Forms 2580n+ Mono DOT Matrix Printer

Your Price: $903.03
> New, Lexmark #11C0109
> Mono, DOT Matrix Printer
Free Shipping.
Free UPS Ground Shipping
* Freight requiring LTL to be quoted
* Average ship time, approximately one week
Still not sure? We'd love to help

Call us (973) 482-3700

Our prices are competitive
Found a better price? Call us

Product Specifications & Hardware Details

  • Brand: Lexmark
  • MPN: 11C0109
  • Model: Forms 2580n+
  • Type: 9-Pin Dot Matrix Forms Printer with Network Connectivity (Narrow Carriage)
  • Standard Functions: Network Monochrome Impact Printing, High-Speed Multipart Forms Support, Ribbon Character Lifespan Tracking.
  • Optional Functions: Dual-Tractor Loading configurations, Automatic Cut-Sheet Feeding.
  • What's Included in the Box: Lexmark Forms 2580n+ Base Unit, Integrated Internal 10/100BaseTX Ethernet Port, Front Tractor Feeder, Standard Yield Re-Inking Ribbon, Operator Panel Overlays, Setup Guides, and Power Cable.
  • Required Items (Sold Separately): RJ-45 Ethernet network connection cables, standard USB, or Centronics parallel interface cables.

Technical Specifications

Technical Attribute Lexmark Forms 2580n+ Value
Print Speed (Fast Draft) Up to 618 characters per second (cps) at 12 cpi
Print Resolution 240 x 144 dots per inch (dpi)
Multipart Forms Handling Prints up to 1+5 parts (Up to 0.020 inches or 0.51 mm thickness)
Maximum Print Line 8.0 inches
Mean Time Between Failures MTBF of 12,500 Power-On Hours (POH) at 25% duty cycle
Standard Ports Internal Ethernet 10/100BaseTX (RJ-45), USB (4-pin Type B), Centronics IEEE 1284 Bidirectional Parallel (36-pin)
Dimensions (H x W x D) 7.7 inches x 19.4 inches x 11.4 inches

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Lexmark Forms 2580n+. You can add these to your order directly from the accessories tab below:

  • Ribbon Supplies: Lexmark 3070166 Standard Yield Ribbon (4 million characters) or 3070169 High Yield Re-Inking Ribbon (8 million characters)
  • Paper Handling: Lexmark Narrow Tractor 2 Option (Allows two types of continuous forms simultaneously) or Automatic Sheet Feeder (Narrow)
  • Interface Options: Internal RS-232C Serial Interface Connection Card

Frequently Asked Questions (FAQ)

  • What does the "n" designation represent on the Lexmark Forms 2580n+ configuration?
    The "n" indicates that the printer is network-ready straight out of the box. This model features a factory-integrated internal 10/100 Ethernet print server right on the motherboard for native shared office routing over LAN networks.
  • What physical dimensions of continuous forms media are supported?
    It manages tractor-fed multi-part continuous forms from a minimum of 3.0 inches x 3.0 inches up to a maximum page width of 10 in. and page length of 22 inches. Single cut sheets are supported up to 11.7 inches wide.
  • What print languages and text styles are integrated natively?
    The printer system arrives pre-loaded with standard emulations for Personal Printer Data Stream (PPDS), Okidata MICROLINE Emulation, and Epson Emulation protocols.
