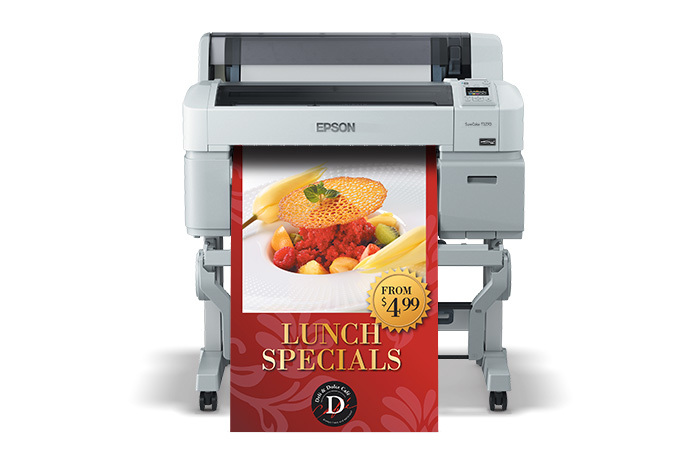

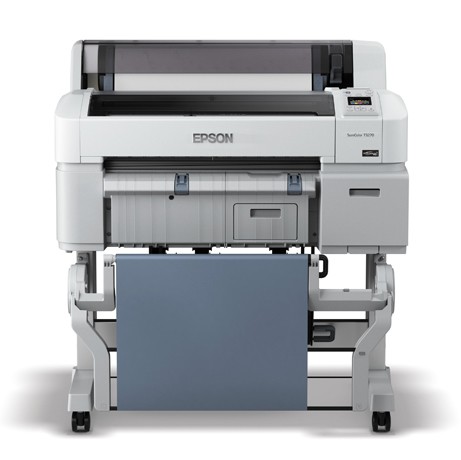

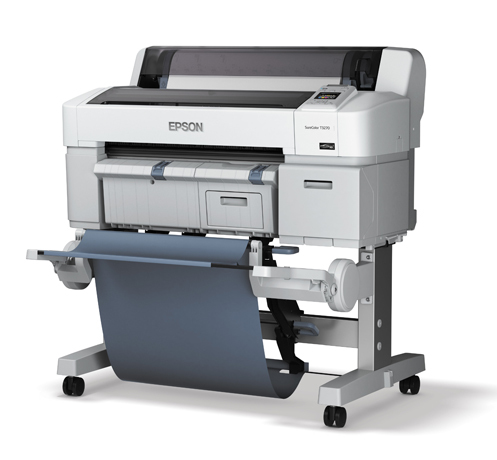

New Epson SureColor T3270 Color Wide Printer

Your Price: $1,675.75

> New, Epson #SCT3270SR
> Color, Wide Printer

Free Shipping.
Free UPS Ground Shipping
* Freight requiring LTL to be quoted
* Average ship time, approximately one week

Description
Specification
Accessories
Related Items

Product Specifications & Hardware Details

Brand: Epson
MPN: SCT3270SR
Model: SureColor T3270
Type: Technical 24-Inch Large Format Inkjet Color Printer
Standard Functions: High-precision CAD/GIS drafting, blueprint plotting, architectural rendering, commercial retail poster creation, automatic switching between matte and photo black ink channels, and integrated automatic media cutting.
Optional Functions: High-volume network print queue processing and centralized graphic server data routing.
What's Included in the Box: Epson SureColor T3270 Base Unit, space-saving floor stand with catch basket, initial starter set of 5 UltraChrome XD pigment ink cartridges (110 ml each), 2-inch and 3-inch roll media spindle adapters, user-replaceable maintenance tank, physical AC power cable, quick setup guide charts, and driver installation utilities.
Required Items (Sold Separately): Standard high-speed USB 2.0 or Ethernet network communication interface lines and replacement target paper media rolls up to 24 inches wide.

Technical Specifications

Technical Attribute	Epson SureColor T3270 Value
Print Resolution	2880 x 1440 optimized dpi powered by an advanced PrecisionCore TFP print head assembly
Maximum Media Width	24 inches wide max roll or cut-sheet width capacity
Ink System Architecture	5-color individual ink slot layout using UltraChrome XD pigment inks: Cyan, Magenta, Yellow, Photo Black, and Matte Black
Minimum Ink Droplet Size	3.5 picoliters utilizing Advanced Variable Droplet Technology for crisp line accuracy
Maximum Plotting Speed	Produces a standard D-size (22 inches x 34 inches) technical drawing in as fast as 28 seconds
Media Feed Support	Front-loading roll feed path using standard 2-inch or 3-inch inner core diameters; top manual cut-sheet bypass feed option
Physical Dimensions	42.0 inches Width x 30.0 inches Depth x 44.0 inches Height (measured on included factory stand frame)
Network Connectivity	1 standard High-Speed USB 2.0 device connection port and 1 integrated 10/100/1000 Gigabit Ethernet interface hub

Available Options & Consumables

We stock a full range of official accessories and replacement parts for your Epson SureColor T3270 plotting station:

Replacement Ink Supplies: Genuine Epson UltraChrome XD pigment ink cartridges (available in 110 ml, 350 ml, or high-capacity 700 ml size variations)
Media Handling Add-ons: Specialized replacement automatic rotary cutting blades and heavy-duty 24-inch roll media spindle adapters
Maintenance Hardware: User-replaceable external waste ink maintenance tanks (MPN: T619300)

Frequently Asked Questions (FAQ)

What separates the technical SureColor T-series from standard graphic arts printers?
The SureColor T3270 is engineered explicitly for technical design, engineering, and architectural spaces. It uses a high-velocity 5-color ink configuration tailored to deliver exceptional line precision, smudge-resistant blueprints, sharp text formatting, and vibrant color-coded CAD maps at extreme production speeds rather than complex fine-art photographic transitions.
Do I have to manually swap ink lines when shifting between tracing bond paper and glossy presentation media?
No. The printer carriage mounts independent fluid delivery channels for both Photo Black and Matte Black simultaneously. The internal routing paths automatically switch black ink lines depending on the specific media type profile you target inside your design application or driver, completely eliminating manual line flushing or down-time.
What are the archival qualities of prints made using UltraChrome XD inks?
The all-pigment UltraChrome XD ink system produces exceptional archival resilience. Final layout drawings, blueprints, and posters boast high resistance to moisture smudging, oil fingerprints, scratching, and fade breakdown under indoor light exposure, ensuring technical documents remain perfectly readable during field deployment or long-term archiving.
