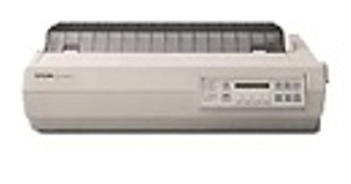

Refurbished Epson LQ-2500 Mono DOT Matrix Printer

Product Specifications & Hardware Details

• Brand: Epson
• MPN: L602
• Model: LQ-2500
• Type: 24-Pin Wide-Carriage Impact Dot Matrix Printer
• Standard Functions: Letter-Quality Document Printing, High-Speed Multipart Form Printing, Continuous Tractor-Feed Management, Wide Ledger Processing
• Optional Functions: Serial Interface Connectivity, Cut-Sheet Feeder Attachments, Interchangable Font Cartridges
• What's Included in the Box: Epson LQ-2500 Printer, Built-In Push Tractor Assembly, Fabric Black Ribbon Cartridge, Platen Knob, Paper Guide Tray, Option Card Interface Slot Cover, and User Installation Manual.
• Required Items (Sold Separately): Continuous pin-feed tractor paper tracking stock, and an external plug-in interface module (Centronics Parallel, RS-232C Serial, or alternative custom option card).

Technical Specifications

Available Options & Consumables

We stock a full range of official accessories and replacement supplies for the Epson LQ-2500. You can add these to your order directly from the accessories tab below:

• Ribbon Cartridges: Premium Replacement Black Fabric Ribbon Cartridges (Epson #7753)
• Interface Modules: Plug-in Centronics Parallel Card, RS-232C Serial Card, or legacy custom configuration cards
• Paper Feed Attachments: Single-bin or dual-bin automated Cut Sheet Feeder options for discrete paper batches
• Tractor Upgrades: Optional Pull Tractor Unit for specialized continuous paper path tracking configurations

Frequently Asked Questions (FAQ)

• What unique milestones does the historical LQ-2500 layout feature?
  The LQ-2500 is a highly regarded classic legacy platform. It combined severe industrial printing speed with a 24-pin high-resolution striking array. It was widely adopted for corporate computing centers because it could handle multi-part corporate sheets while outputting clean, professional text fonts that looked typewritten.
• How does the modular expansion slot system manage computer connections?
  This chassis is built with an interchangeable module interface bay. Instead of hardwiring a single port onto the mainboard, you slide your preferred interface card (such as parallel or serial blocks) straight into the back slot, making it universally adaptable to various retro computer networks.
• What page width and sizing capacity does this wide platen handle?
  The wide platen assembly accommodates continuous tractor-feed sheets with page widths ranging from 4.0 inches up to 16.0 inches. This enables users to print wide accounting ledgers, large transport manifests, and multi-column billing records seamlessly.
• How do I change default tracking configurations like line spacing or emulation?
  Hardware parameters are adjusted via physical onboard DIP switch rows protected behind front panel doors. These micro switches allow you to alter line feed logic, character maps, font selection baselines, or shift standard page lengths between 11 inches and 12 inches.
