  5. New Epson SureColor T5470 Color Wide Printer

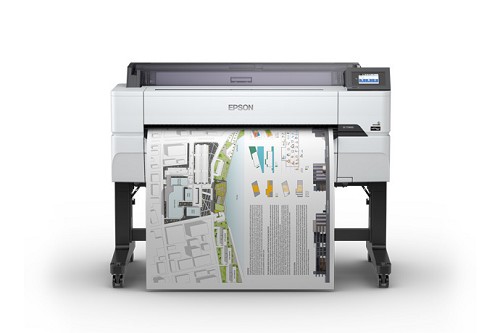

This photo is from the manufacturer and may show with options at added costs. Please see the options listed or the PDF file.

Please assume supplies and cables are not included with demo and refurbished products

New Epson SureColor T5470 Color Wide Printer

Your Price: $3,327.27
> New, Epson #SCT5470SR
> Color, Wide Printer
Free Shipping.
Free UPS Ground Shipping
* Freight requiring LTL to be quoted
* Average ship time, approximately one week
Still not sure? We'd love to help

Call us (973) 482-3700

Our prices are competitive
Found a better price? Call us

Product Specifications & Hardware Details

  • Brand: Epson
  • MPN: SCT5470SR
  • Model: SureColor T5470
  • Type: Technical Wireless 36-Inch Large Format Inkjet Color Printer
  • Standard Functions: Production-class CAD/GIS drafting, construction blueprint plotting, architectural rendering, retail signage and poster creation, automatic switching between matte and photo black ink channels, and integrated automatic media cutting.
  • Optional Functions: Secure mobile cloud printing via the Epson Smart Panel software utility and direct wireless network file processing.
  • What's Included in the Box: Epson SureColor T5470 Base Unit, heavy-duty commercial stand frame with integrated fabric catch basket, initial starter set of 5 UltraChrome XD2 pigment ink cartridges (110 ml each), integrated 36-inch roll media spindle system, user-replaceable maintenance tank, physical AC power cable, quick setup guide poster, and driver installation utilities software.
  • Required Items (Sold Separately): Standard high-speed USB 2.0 or Ethernet network communication interface lines if hardwiring to a workstation, and replacement target paper media rolls or cut-sheet packs up to 36 inches wide.

Technical Specifications

Technical Attribute Epson SureColor T5470 Value
Print Resolution 2400 x 1200 optimized dpi powered by an advanced PrecisionCore MicroTFP print head assembly
Maximum Media Width 36 inches wide max roll or cut-sheet width capacity
Ink System Architecture 4-color individual ink slot layout using UltraChrome XD2 pigment inks: Cyan, Magenta, Yellow, and specialized Black (with dual photo/matte switching paths)
Minimum Ink Droplet Size 4.0 picoliters utilizing Advanced Variable Droplet Technology for high line precision
Maximum Plotting Speed Produces a standard A1/D-size (22 inches x 34 inches) technical drawing or blueprint in as fast as 22 seconds
Media Feed Support Front-loading roll feed path up to 36 inches wide; top manual cut-sheet bypass feed option
Built-in Display Screen 4.3 inches premium color touchscreen status panel with intuitive graphics interface
Physical Dimensions 55.0 inches Width x 28.0 inches Depth x 42.0 inches Height (measured on included factory stand frame)
Wireless & Data Links Integrated Wi-Fi CERTIFIED (802.11 b/g/n), Wi-Fi Direct, Apple AirPrint, Hi-Speed USB 2.0 port, and 1 standard Gigabit Ethernet network interface hub

Available Options & Consumables

We stock a full range of official accessories and replacement parts for your Epson SureColor T5470 plotting station:

  • Replacement Ink Supplies: Genuine Epson UltraChrome XD2 pigment ink cartridges (available in high-capacity 150 ml or extreme-production 350 ml size blocks)
  • Media Handling Add-ons: Specialized replacement automatic rotary cutting blades and heavy-duty 36-inch roll media spindle adapters
  • Maintenance Hardware: User-replaceable external waste ink maintenance tanks (MPN: T619300)

Frequently Asked Questions (FAQ)

  • What separates the T5470 from the entry-level T5170 model?
    The SureColor T5470 is built for heavy-duty corporate workloads and faster print paces. It features a larger, more rugged physical frame, much faster throughput—knocking out an A1/D-size layout sheet in 22 seconds versus the T5170's 31 seconds—and supports high-volume 150 ml and 350 ml ink cartridges to dramatically decrease operating costs and user ink swaps.
  • Do I have to manually swap physical black cartridges when shifting between matte tracing paper and glossy presentation stock?
    No. The printer carriage mounts independent automated fluid delivery channels for both Photo Black and Matte Black simultaneously. The internal routing paths automatically switch black ink lines depending on the specific media type profile you target inside your design application or driver, completely eliminating manual line flushing or down-time.
  • What unique advantages does the UltraChrome XD2 ink chemistry introduce?
    The next-generation UltraChrome XD2 all-pigment ink system provides exceptional archival resilience. Final construction site blueprints, CAD map drawings, and presentation layouts boast high resistance to rain moisture smudging, oil fingerprints, scratching, and fade breakdown under harsh field environments.
